2019 Retromobile show

Artikel bewerten
(0 Stimmen)

From track to road, the turbo according to Renault

At the 2019 Retromobile show, Renault is exhibiting legendary cars powered by turbocharged engines. The carmaker is celebrating the 40th anniversary of its first Formula 1 victory, the first by a turbocharged engine. The show is a chance to find out more about Renault’s central and pioneering role in the introduction and use of turbo engines in Formula 1 racing as well as the transfer of this technology from motorsport to production vehicles.

The turbocharger, a history of supercharging

040219 2019 retromobile show 17

Renault sees motorsport in general, and Formula 1 in particular, as a laboratory and showcase for its technological know-how. In addition to Renault’s passion for sporting challenges and its taste for victory, motorsport is a fantastic opportunity for developing leading-edge technologies that later benefit production vehicles, either directly or indirectly.

Since 1977, Renault’s Formula 1 commitment has made it a major player in the discipline, recognized not just for its titles but also for the innovations featured on its single-seaters and those that it has powered to success. It all began with the famous turbocharged V6 engine fit on the Renault RS01, which stood as a complete revolution at the time. Once the novelty, initial hitches and jeering were over, success came fast. July 1, 1979 marked a true turning point in the history of the turbo, with Jean-Pierre Jabouille winning the French Grand Prix in his RS 10 on the Dijon-Prenois track and bringing Renault its first victory in the Formula 1 World Championship. René Arnoux’s third-place finish, after a Homeric battle with Gilles Villeneuve in his Ferrari 312T, rounded out the success of the young team. Renault had revolutionized motorsport. For the first time, a 1.5 liter turbocharged engine had triumphed over the traditional normally aspirated 3.0 liter powerplants competing in the premier class competition. The victory at the 1979 French Grand Prix was the first in a long series of triumphs for Renault, which has notched up 177 wins and 507 top-three finishes in the category (chassis and engines).

The heritage of this major innovation having revolutionized Formula 1 continues today, as seen in the return of the V6 hybrid turbo engines to Formula 1 in 2014. This achievement pays testament to Renault’s vision. By taking up the challenge of the new regulation, Renault has drawn on all of its expertise as a Formula 1 engine supplier to further technological innovation. This is a major advantage for its production models, and has been for 40 years now.

“The idea of transferring the turbo technology used on trucks, notably in the United States, to Formula 1 competition is without a doubt one of the boldest, and also most visionary, ideas in the history of motorsport. Transposed to high-volume production cars, the turbo has become part of our everyday lives and a symbol of power, speed and progress.” Cyril Abiteboul - Managing Director of Renault Sport Racing

Supercharging: a principle patented by Louis Renault

Improving the yield of an engine by optimizing the quantity of the air filling its cylinders is not a new idea. The principle of supercharging that later gave rise to the turbocharger was devised back in 1902 by Louis Renault. In that year, he filed an invention patent on the means of “increasing the gas intake pressure in cylinders [via] a fan or a small compressor”.

After the Second World War, the compressor, and above all the turbocharger, the reliability of which had been improved, were used widely on the large diesel engines of locomotives and heavy goods vehicles.

The turbocharger made its appearance on Renault engines in the early 1970s. An Alpine A110 group 5 was fitted with a turbocharged engine in 1972. Despite a lengthy lag time, Jean-Luc Thérier drove the car to victory at the Critérium des Cévennes race in that same year.
But things really got serious on the track in 1975, with the A441T endurance prototype, followed by the A442, A442B and A443, with a victory by the Jean-Pierre Jaussaud/Didier Pironi team at the Le Mans 24 Hours in 1978.

Renault then set its sights on a bold new goal: to win the Formula 1 with a 1,500 cm3 turbocharged engine competing against the conventional 3.0 liter normally aspirated engines. The turbocharger today is used on a majority of Renault’s production cars consistent with the current trend towards downsizing or “rightsizing”. Equipping an engine with a turbocharger reduces or maintains the capacity of an engine while increasing its power and limiting fuel consumption and pollutant emissions.

Legendary cars, from motorsport to production vehicles

The transfer of technology from F1 to production cars is embodied by a selection of models exhibited by Renault Classic* at the 2019 Rétromobile show. Renault is celebrating the 40th anniversary of its first, revolutionary Formula 1 victory at the event by exhibiting a 1979 RS 10 together with a selection of emblematic production cars. These models show how Renault, starting in 1980, transferred the technical expertise in turbocharging acquired in motorsport to its production range. The 600 m2 stand is home to 11 Renault models equipped with a turbo engine. In addition, an Estafette – a model celebrating its 60th birthday in 2019 – adorned with the colors of the 1979 Formula 1 team is serving as a store.

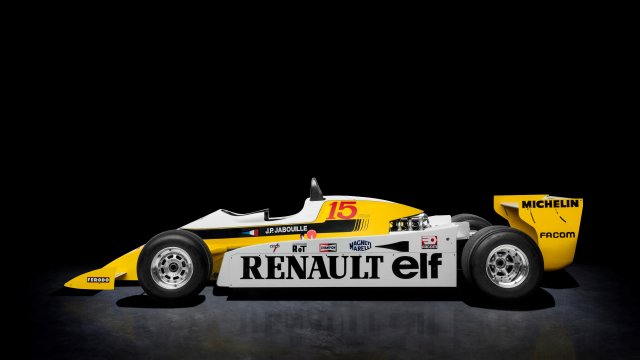

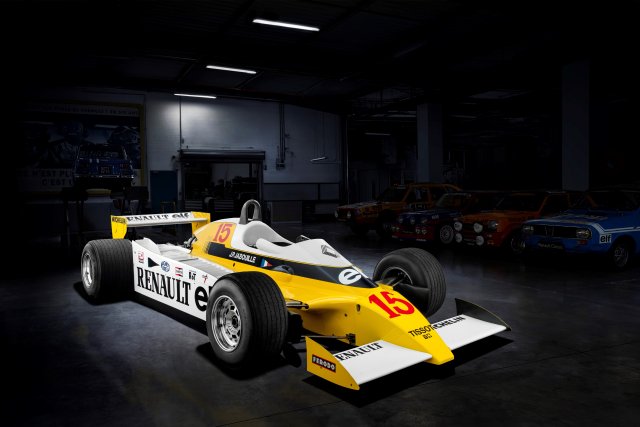

RENAULT F1 RS 10 – 1979

040219 2019 retromobile show 21

Jean-Pierre Jabouille claimed Renault’s first Grand Prix victory in 1979 on the Dijon-Prenois track in France at the wheel of the RS 10. It was the first Formula 1 win by the Renault-Gordini EF1 engine, and the first-ever F1 triumph by a turbocharged engine. The engine in question was a 1.5 liter V6 turbo, the development of which began in the 1975 season. Powering the Alpine A441 endurance prototype, it made its debut on the Paul Ricard track. The development of the engine was pursued both on test benches and cars. It made its first Grand Prix appearance at the 1977 British Grand Prix in the shape of a 90° V6 engine with a capacity of 1,492 cm3 and four valves per cylinder, supercharged from 1979 by two turbochargers. The engine weighed some 180 kilograms with the starter, clutch and supercharger system. The engine was calculated to operate at a speed of 12,000 rpm.

René Arnoux added to the young team's success with a third-place finish after a Homeric battle with Gilles Villeneuve in his Ferrari. Through its drivers and engineers, Renault had revolutionized motorsport, establishing the turbocharged engine as a rival to normally aspirated engines.

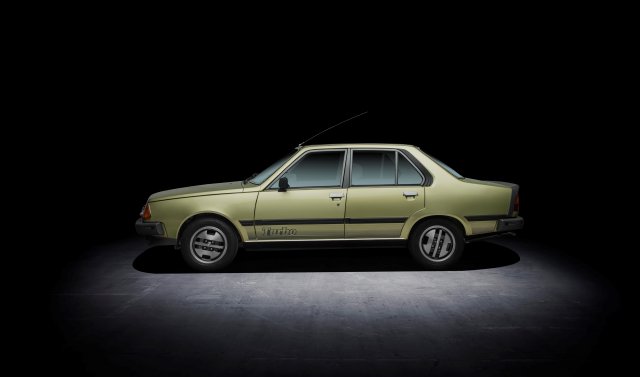

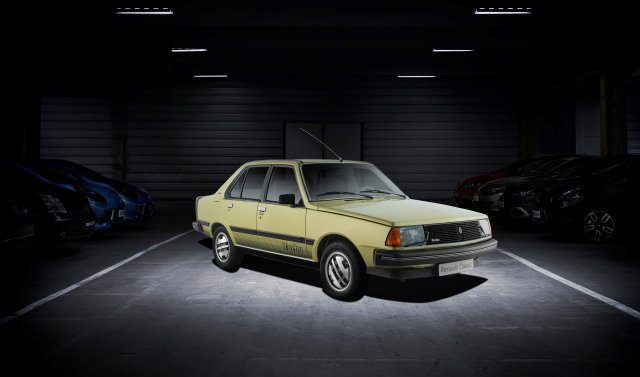

RENAULT 18 TURBO – 1980

040219 2019 retromobile show 20

Domesticated for application on a mid-range production model, the advanced turbo technology lent the Renault 18 a quiet force, blending fieriness with smoothness and calm. An uncommon combination of somewhat contradictory qualities made this car a true original as well as a real pleasure to drive.

For sporty driving, it rivaled with the top-performing cars on the market. For everyday use, it was a family sedan with high-end equipment offering a silent and agreeable drive. The model's top speed of 185 km/h testifies to its performance, while its silent operation was achieved by muffling exhaust noise with the turbo.

The Renault 18 Turbo is equipped with a 1,565 cm3 aluminum four-cylinder engine with maximum power of 81 kW (110 hp DIN) at 5,000 rpm. The Garrett turbocharger is located ahead of the carburetor. Boost pressure is approximately 600 g/cm2. In a distinctive feature, the Renault 18 Turbo's engine is boosted by a turbocharger with a “blown” carburetor fed by cooled air. It is also equipped with a knock detector and an electronic ignition control unit.

The Renault 18 Turbo stands apart through its range of original equipment borrowed from the Fuego, including the dashboard, low-profile tires and front spoiler.

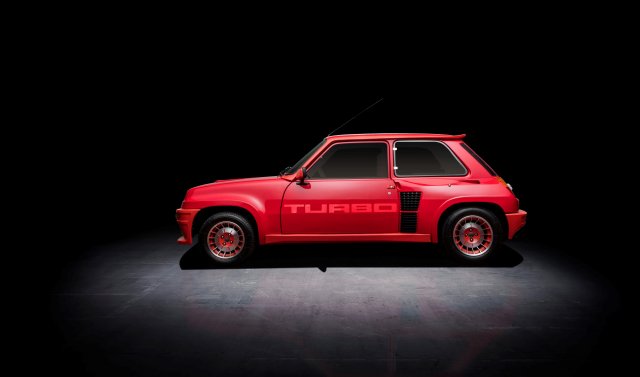

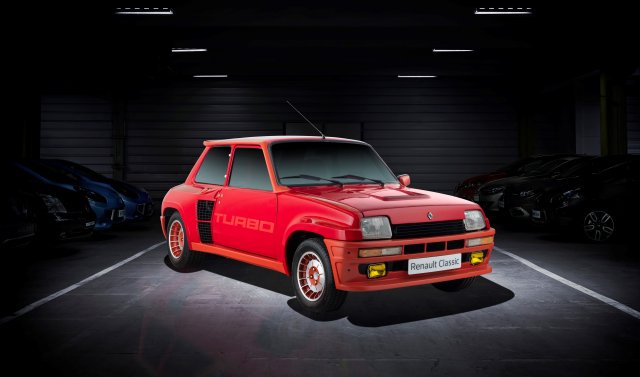

RENAULT 5 TURBO – 1980

040219 2019 retromobile show 18

The Renault 5 Turbo was seen as the true culmination of the Renault 5 range, launched in 1972 and already available in ten versions. The aim was to realize all of the car's potential in terms of handling and power.

It is equipped with a 1,397 cm3 engine with maximum power of 116 kW (160 hp DIN) at 6,400 rpm, based on the Renault 5 Alpine powerplant. The T3 Garrett turbocharger has a maximum boost pressure of 860 g/cm2.

It was developed as part of a motorsport policy, with Renault looking to return to major international rallies with a vehicle able to top the overall standings. For the first time, the teams did the opposite of a regular program. Considering the Renault 5 Turbo first and foremost as a competition car, they then decided to launch a customer version benefiting from what the engineers had learned in motorsport competition. Unlike the mass-production front-wheel-drive Renault 5 models, the Renault 5 Turbo was driven by the rear wheels for maximum grip.

With Jean Ragnotti at the wheel, the Renault 5 Turbo won the 49th Monte-Carlo Rally in 1981 along with numerous other rally competitions.

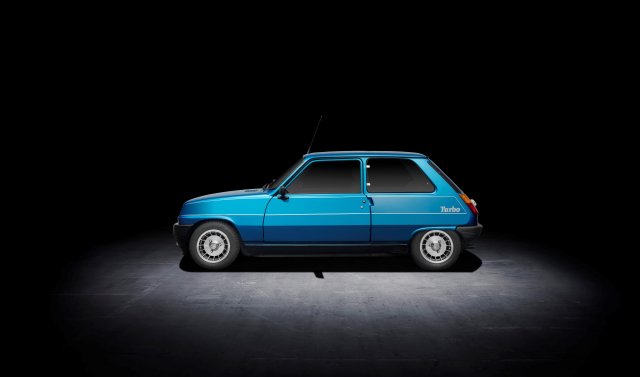

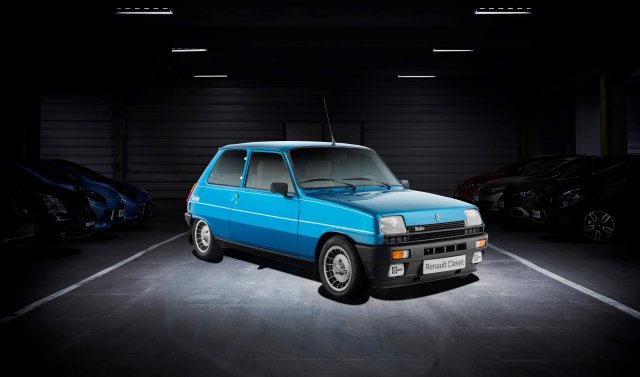

RENAULT 5 ALPINE TURBO – 1981

040219 2019 retromobile show 16

Before the Renault 5 Turbo, the Renault 5 Alpine (1976) was the most athletic model in the range. It became the Renault 5 Alpine Turbo in 1981. The new model was an upgrade, with a turbo added to its 1,397 cm3 engine. An intercooler could not be installed owing to a lack of space in the engine compartment. And to keep the price down, the car was not fitted with a knock limit-controlled ignition system. But the turbocharger boosted the performance of the new Renault 5 Alpine Turbo, with power increasing 18% from 93 to 110 hp DIN and, above all, engine torque rising 30% from 108 to 147 Nm. The model reached a top speed of 185 km/h. The only options available were new (Renault 5 Turbo-style) wheel rims and power steering.

The Renault 5 Alpine Turbo thus became the highest-performance small car for sports use on the market. The car’s impressive performance does not detract from driving and acoustic comfort. By increasing fill rates at high engine speeds, the turbocharger enables the use of a camshaft favorable to the lowest speeds, mainly reflected in the extreme smoothness of the engine and rounded and stable idling at very low engine speeds (for silence and economy). The turbocharger makes the car a very strong road performer that is also smooth and pleasant to drive in town.

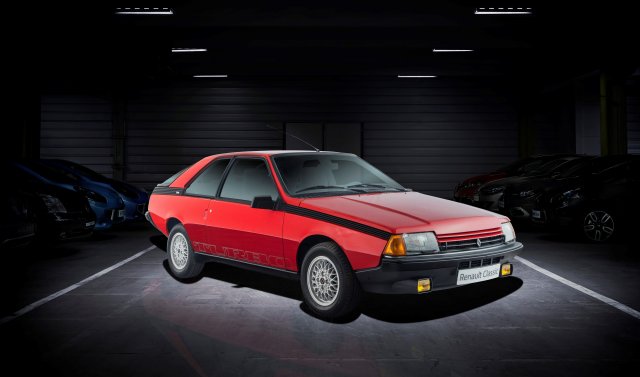

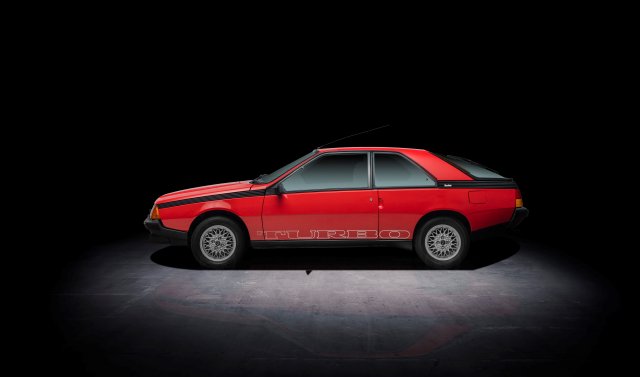

RENAULT FUEGO TURBO – 1983

040219 2019 retromobile show 14

Drawing on its motorsport experience and expertise in the large-scale industrial applications of turbochargers, Renault decided to produce a high-performance version of its Fuego coupé in 1980. The model in question was a petrol Renault Fuego Turbo, as the range already included a Turbo D version. The Renault Fuego Turbo features extremely athletic qualities including impressively low drag. It is powered by a 1,565 cm3 turbocharged engine based on the Renault 18 Turbo’s powerplant. The engine is boosted by a Garrett T3 turbocharger with a 32 DIS “blown” carburetor, an electric petrol pump and a petrol pressure regulator.

However, while the Renault 18 Turbo was designed to achieve the best compromise between performance and fuel economy, the Fuego Turbo is all about performance. It features stronger boost pressure and modified ignition and carburetion. An electric fan unit attached to the air-air intercooler and oriented towards the carburetor cool the engine compartment, and the carburetor area in particular, after the engine is turned off. As a result, the engine can start up in the best possible conditions, even when warm.

The Renault Fuego Turbo develops maximum power of 97 kW (132 hp DIN) and boasts a top speed of 200 km/h. An extremely impressive accelerator, it goes from 0 to 100 km/h in 9.5 seconds. The turbo technology used results in silent operation and the stored engine power is delivered in full up to maximum speed. Drivers benefit from the coupé’s grip on winding roads as well as its ease on highways. With its extensive equipment (including BBS “honeycomb” alloy wheels, air conditioning and side “Turbo” decals), the Renault Fuego Turbo is a high-end model.

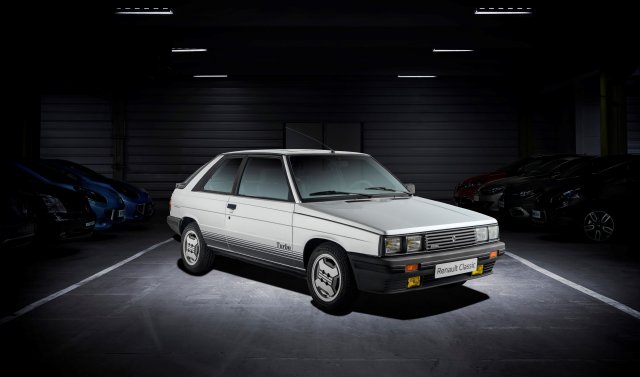

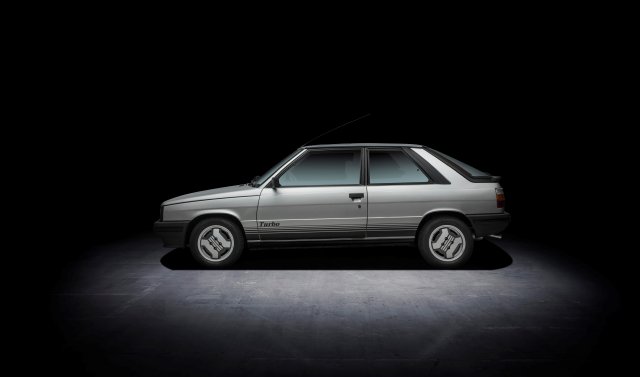

RENAULT 11 TURBO (1984) AND RENAULT 9 TURBO (1985)

040219 2019 retromobile show 12

In 1984, Renault fit a Garrett T2 turbocharger on the 1,400 cm3 “Cléon-fonte” engine powering most versions of the Renault 11. The Renault 11 Turbo headed the range and became the Renault brand’s leading compact sports model, developing 105 hp DIN at 5,500 rpm, 157 Nm of torque at 2,500 rpm and accelerating from 0 to 100 km/h in a brisk 9 seconds. The Renault 11 Turbo has a top speed of 186 km/h and stands out with its emphatic body features, including side strips with “Turbo” lettering, fog lamps, and a spoiler sill integrated in the front bumper. In addition to a full range of comfort equipment, the model featured a 4-spoke sports steering wheel, a rev counter and the famous oil-pressure and turbo-pressure gauges characteristic of turbocharged Renaults.

Initially available as a three-door model, the Renault 11 Turbo was launched in a five-door version in France in 1985. Having achieved a distinguished rally career (with victories in Group N in the Tour de Corse and at Monte Carlo), the Renault 11 Turbo gained an extra 10 hp in 1987, taking the total to 115 hp.

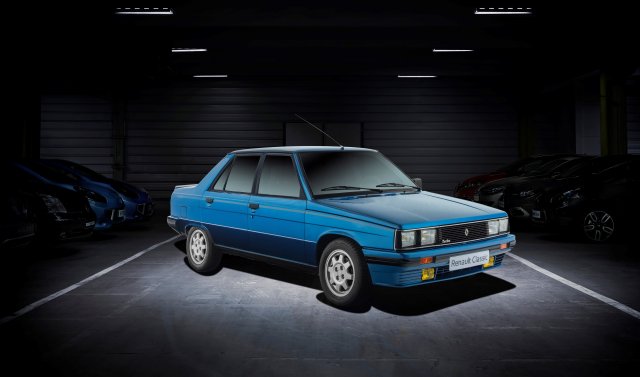

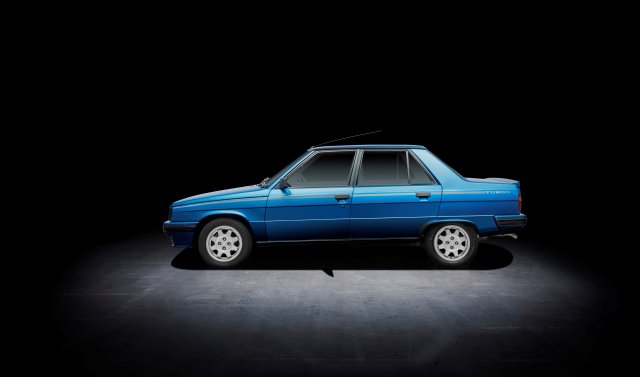

After the Renault 11 in 1984, the Renault 9 range was also enhanced with a turbo version in 1985. The three-box version of the compact Renault model was thus available in a version combining a seriously sporty personality with even stronger natural elegance.

The road performance of the Renault 9 Turbo made it a leading model in the privileged club of mid-range sports sedans. It is a particularly strong performer with a 1,397 cm3 engine fitted with a Garrett T2 turbocharger located ahead of the carburetor. The model develops 105 hp DIN and reaches a top speed of 184 km/h.

040219 2019 retromobile show 10

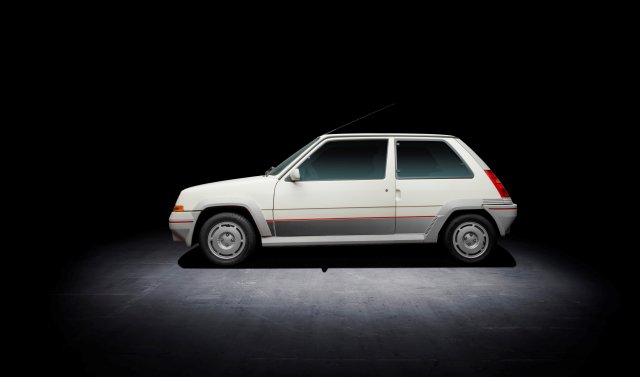

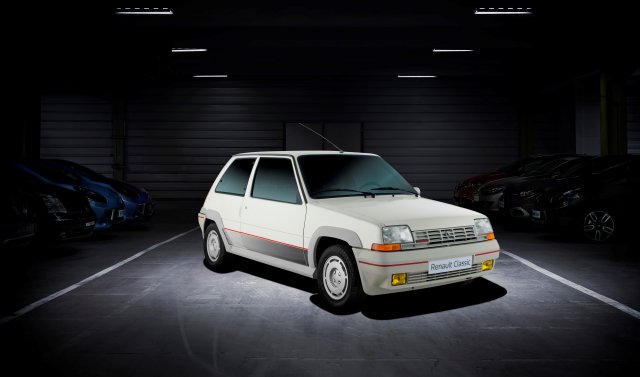

RENAULT 5 GT TURBO – 1985

040219 2019 retromobile show 08

With the “Supercinq” replacing the Renault 5, the Renault 5 GT Turbo succeeded the Renault 5 Alpine Turbo in 1985. The model’s road behavior, highlighted in particular by its lively engine, won over dynamic customers looking for top-flight driving pleasure. It was the tenth model in the Supercinq range.

The engine on the Renault 5 GT Turbo is part of the type C “Cléon-fonte” family powering the Renault 5, 9 and 11 ranges. It is equipped with the same Garrett T2 turbocharger as the Renault 11 Turbo engine, but also boasts specific components, including oil rings, an oil pump, a specific oil feed system and cylinder head gasket, an intake manifold with water circulation, and a more diagonal camshaft for increased torque.

The turbocharger on the Renault 5 GT Turbo is efficient in terms of its reduced dimensions and mass, excellent thermal dissipation and low inertia, which serves to reduce response times. The specific turbo regulation system on this model, via capsule and valve, result in a slight growth in boost pressure in step with engine speed. This is beneficial to power, which totals 85 kW (115 hp DIN) at 5,750 rpm. The top speed of the Renault 5 GT Turbo is 200 km/h.

It became a track star as part of the “Renault 5 GT Cup” and also enjoyed a superlative rally career, winning two World Championship titles in Group N.

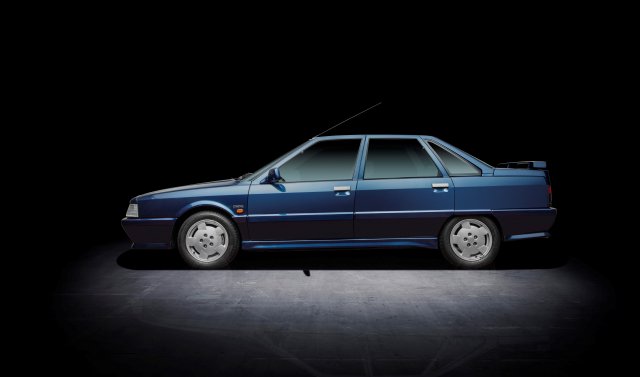

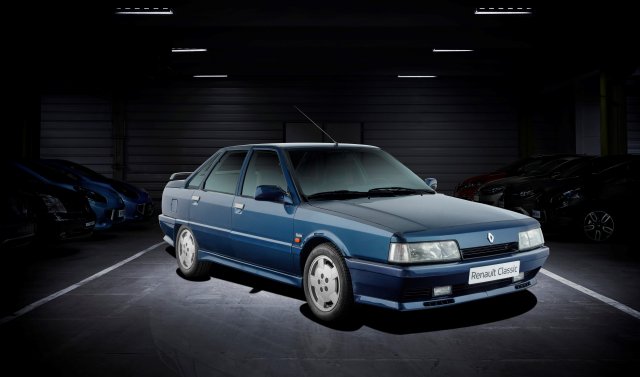

RENAULT 21 2L. TURBO – 1987

040219 2019 retromobile show 06

In the second half of the 1980s, Renault pursued its policy of offering a high-performance version with a turbocharged engine for each product range. The Renault 21 2L. Turbo targeted the small but prestigious niche of emphatically sporty sedans such as the BMW 325i E30 and Mercedes 190 E 2.3 16. Competing against these models, the Renault 21 2L. Turbo boasted impressive performance, with a top speed of 227 km/h and a standard-fit ABS system. Intended for in-the-know motorists looking for sports cars offering real driving pleasure, it became the most sporty sedan in the Renault range and the flagship Renault 21.

The 1,995 cm3 engine on the Renault 21 2L. Turbo, based on the 2-liter “Jet” petrol engine, develops power of 129 kW (175 hp DIN) at 5,200 rpm (162 hp for the catalyzed version) and torque of 270 Nm at 3,000 rpm. The light alloy engine features fully electronic management with a control unit simultaneously controlling the ignition, injection and boost pressure.

This was the first time it appeared in a supercharged version, with a water-cooled Garrett T3 turbocharger, also controlled electronically. This set-up has a number of advantages, achieving maximum possible torque at all engine speeds and respecting the correct temperature for engine operation. The circuit comprises two air-air intercoolers and a heat shield based on those used in Formula 1 racing.

In motorsport, Jean Ragnotti won the French supertourism championship at the wheel of a 430-hp version.

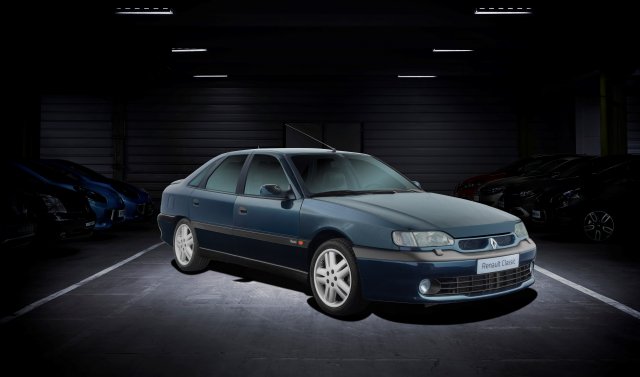

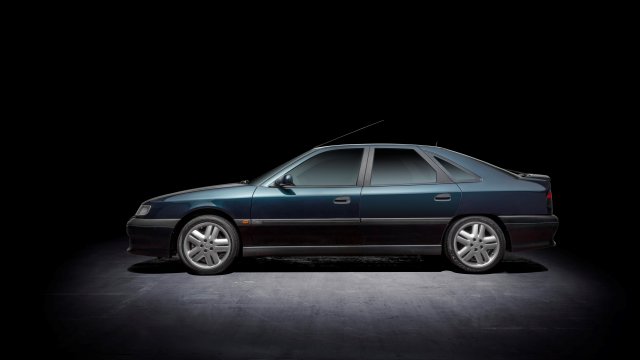

RENAULT SAFRANE BITURBO – 1993

040219 2019 retromobile show 04

More than a sporty sedan, the Safrane Biturbo combines the comfort of a limousine with the road manners of a prestige coupé. At the time, it rivaled the most reputed European sedans on the market. The Renault Safrane Biturbo is powered by a 3-liter V6 PRV engine, similar to that of the Alpine A610 but specifically developed by Hartge (the engine) and Irmscher (the chassis), two renowned German specialists. It was boosted by two new K04 KKK turbochargers. The engine develops 193 kW (268 hp DIN) at 5,500 rpm.

The electronically controlled supercharging is particularly efficient thanks to two small turbos. As well as generating extra power, this solution accelerates the boost pressure increase and thus improves response times. Maximum torque of 365 Nm comes at 2,500 rpm. Torque is particularly accessible, with 97% of the total, or 354 Nm, available from 2,300 to 5,000 rpm. The Safrane Biturbo reaches a top speed of 250 km/h.

This version has class-leading attributes in terms of comfort, performance and safety. The Biturbo version enhances the intrinsic qualities of the model to provide a whole new driving experience. And in addition to the performance of the biturbo engine and its attendant top speed, this prestigious version also possesses outstanding road manners. The car’s permanent four-wheel-drive transmission and electronically controlled suspension deliver maximum safety and consummate cornering precision. Rather than a sports model, the Safrane Biturbo is a powerful, safe and lavishly equipped high-end sedan.

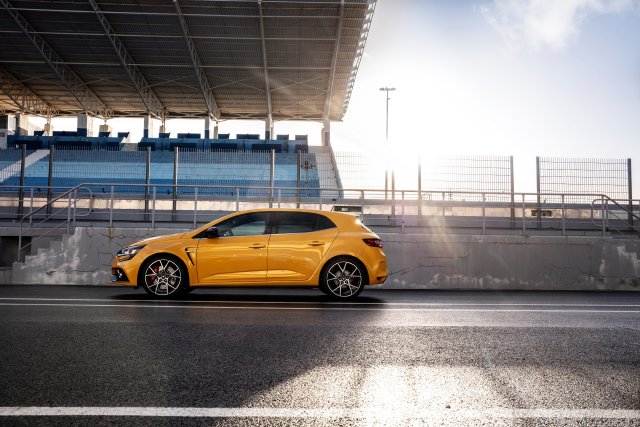

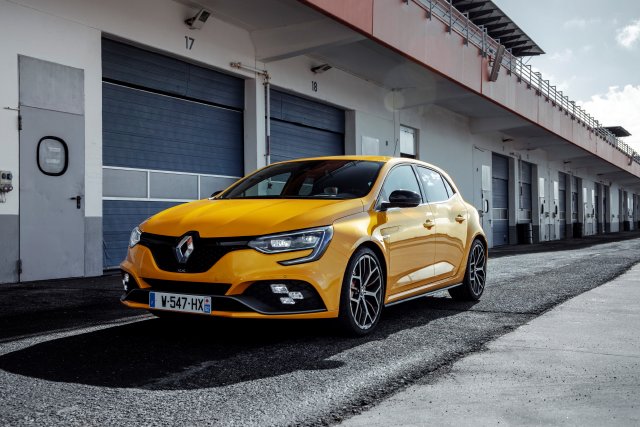

RENAULT MEGANE R.S. TROPHY – 2018

040219 2019 retromobile show 01

The 2018 Renault Mégane R.S. Trophy model based on Mégane IV boosts the Renault Sport range by perpetuating the famous Trophy line, which has existed since the first generation of Mégane R.S. It is the true standard bearer of the Renault Sport brand and the Mégane range in the broadest sense, bringing fans of dynamic driving even more performance and athleticism.

The model is equipped with a 4-cylinder 1,798 cm3 turbo engine developing 300 hp, 420 Nm with the EDC gearbox and 400 Nm with the manual gearbox. This engine also powers Alpine A110 and Mégane R.S., but is optimized on R.S. Trophy thanks to a larger turbo mounted on ceramic ball bearings, which reduces response times. The engine can be mated to a 6-speed gearbox, either manual or a dual-clutch EDC automatic.

Renault Mégane R.S. Trophy is equipped with the “Cup” chassis comprising a Torsen® mechanical limited -slip differential that improves cornering approaches and traction when exiting corners and also provides firmer suspension. It is equipped with the 4CONTROL system with four steering wheels, the agility and stability of which make the model as pleasant to drive on road as on track. It is highly effective in corners, perfectly transferring power to the ground when accelerating sharply with the wheels turned. The chassis boasts progressive responses that enable drivers to approach the limits with peace of mind, snugly ensconced in the optional Recaro bucket seats. Combined with the 300 hp engine, it offers high-level performance on the track as well as at-the-wheel pleasure in everyday driving situations.

*About Renault Classic
The Renault collection comprises over 750 vehicles testifying to the inventiveness and know-how of the company founded in 1898 in Boulogne-Billancourt.
A living collection, it is conserved, maintained and operated by Renault Classic, which regularly showcases the models at exhibitions, shows and vintage races, on press and TV reports, and at sports events around the world.
